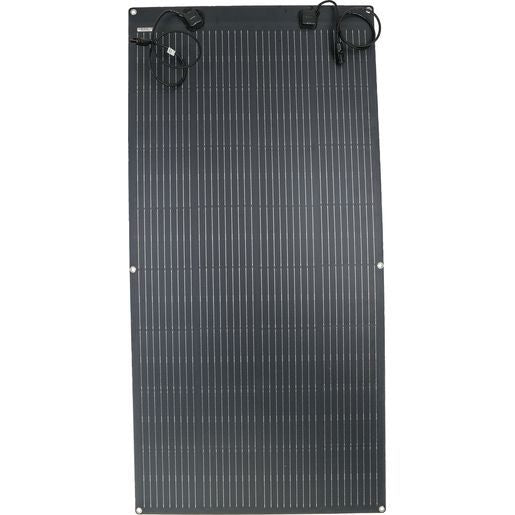

160W SEMI-FLEXIBLE SOLAR PANEL DRIVETECH (DTSPF160)

High quality, lightweight solar panels and solar blankets designed for camping and 4WD off-roading.
Backed by a 12 month guarantee and crafted with high quality, lightweight anddurable materials, you can be sure it will last the distance.
Each panel is manufactured with monocrystalline solar cells which provide better sunlight absorption and more power when compared to traditional polycrystalline panels. Ideal for caravans, camper trailers, boats and 4x4s

FEATURES:

MONOCRYSTALLINE
1370 X 670 X 3MM
OPEN CIRCUIT VOLTAGE 21.9V
SHORT CIRCUIT CURRENT 9.37A
SIMPLY ATTACH YOUR SEMI-FLEXIBLE SOLAR PANEL TO THE ROOF OF YOUR CAR, CARAVAN OR CAMPER TRAILER TO KEEP YOUR BATTERY BANK TOPPED UP, ALLOWING YOU TO POWER YOUR WHOLE CAMPSITE

SPECIFICATIONS:

PART NUMBER: DTSPF160
RATED MAXIMUM POWER (PM): 160W
VOLTAGE AT PMAX (VMP): 18.5V
CURRENT AT PMAX (IMP): 8.75A
OPEN-CIRCUIT VOLTAGE (VOC): 21.9V
SHORT-CIRCUIT CURRENT (ISC): 9.37A
DIMENSIONS (HXWXD): 1370X670X3MM
WEIGHT: 3.9KG
CELL TYPE: MONOCRYSTALLINE
TOLERANCE: ± 3%
NORMAL OPERATING CELL TEMP (NOCT): 47 ± 2 °C
MAXIMUM SYSTEM VOLTAGE: 1000VDC
MAXIMUM SERIES FUSE RATING: 20A
OPERATING TEMPERATURE: -40 °C TO +85 °C
APPLICATION CLASS: CLASS A
