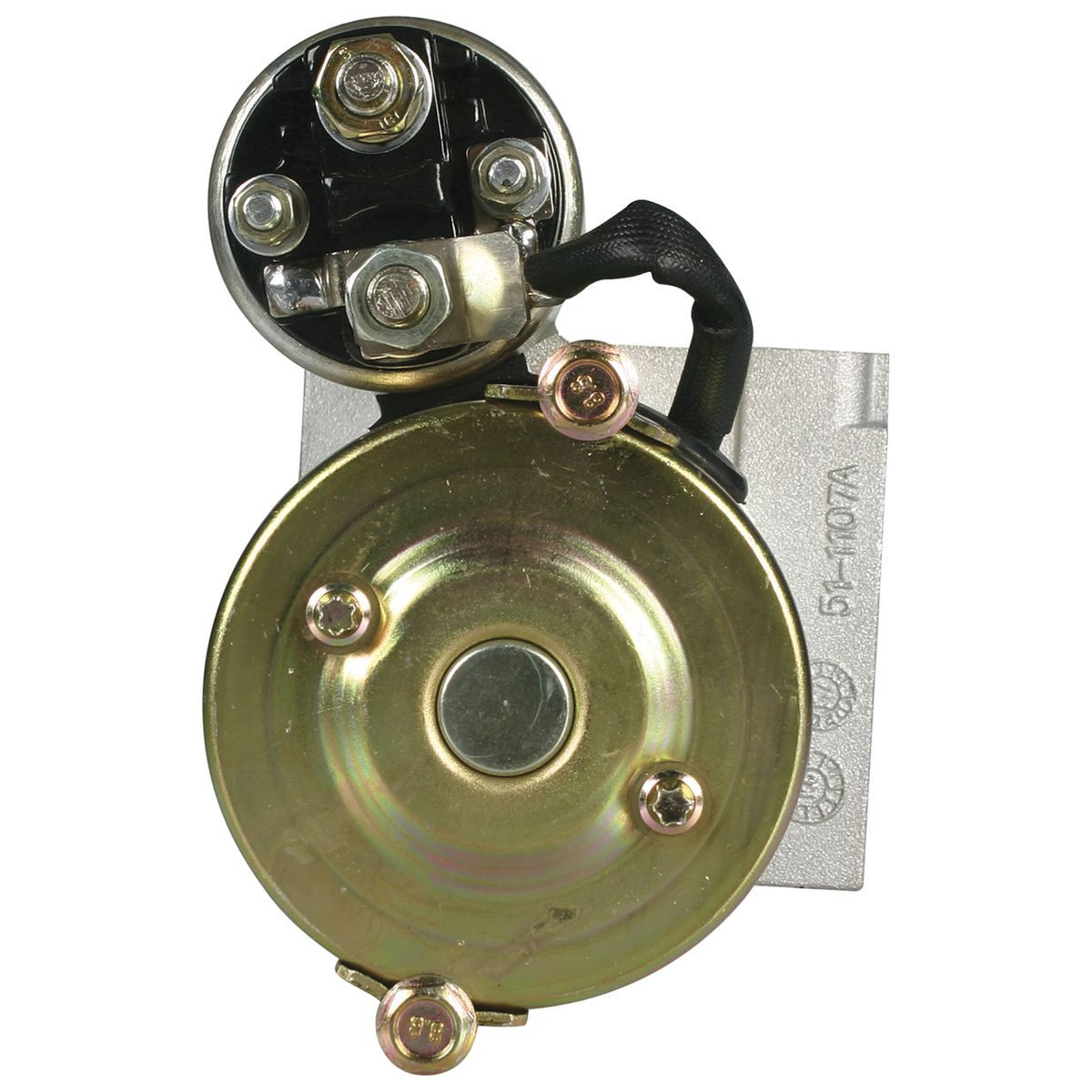

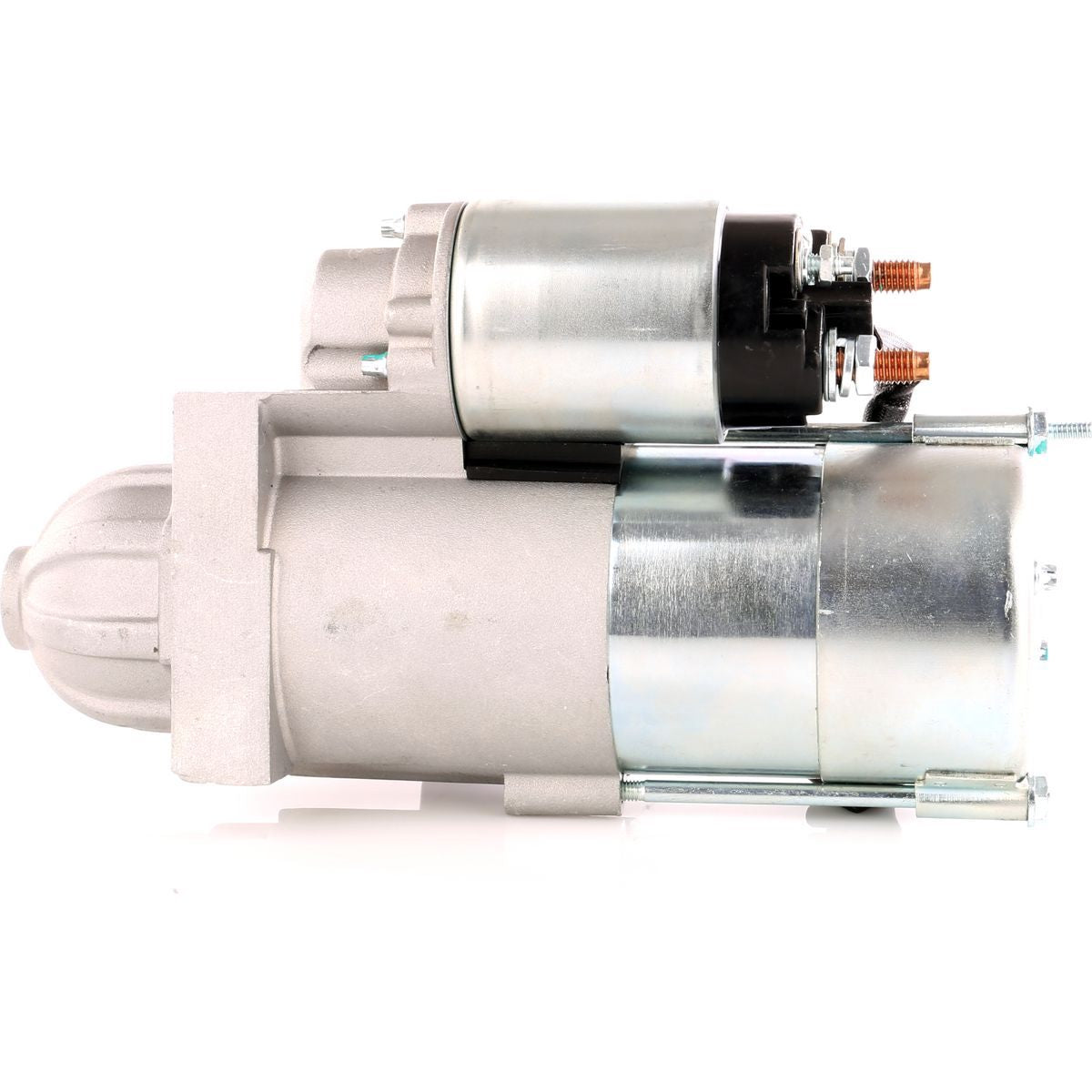

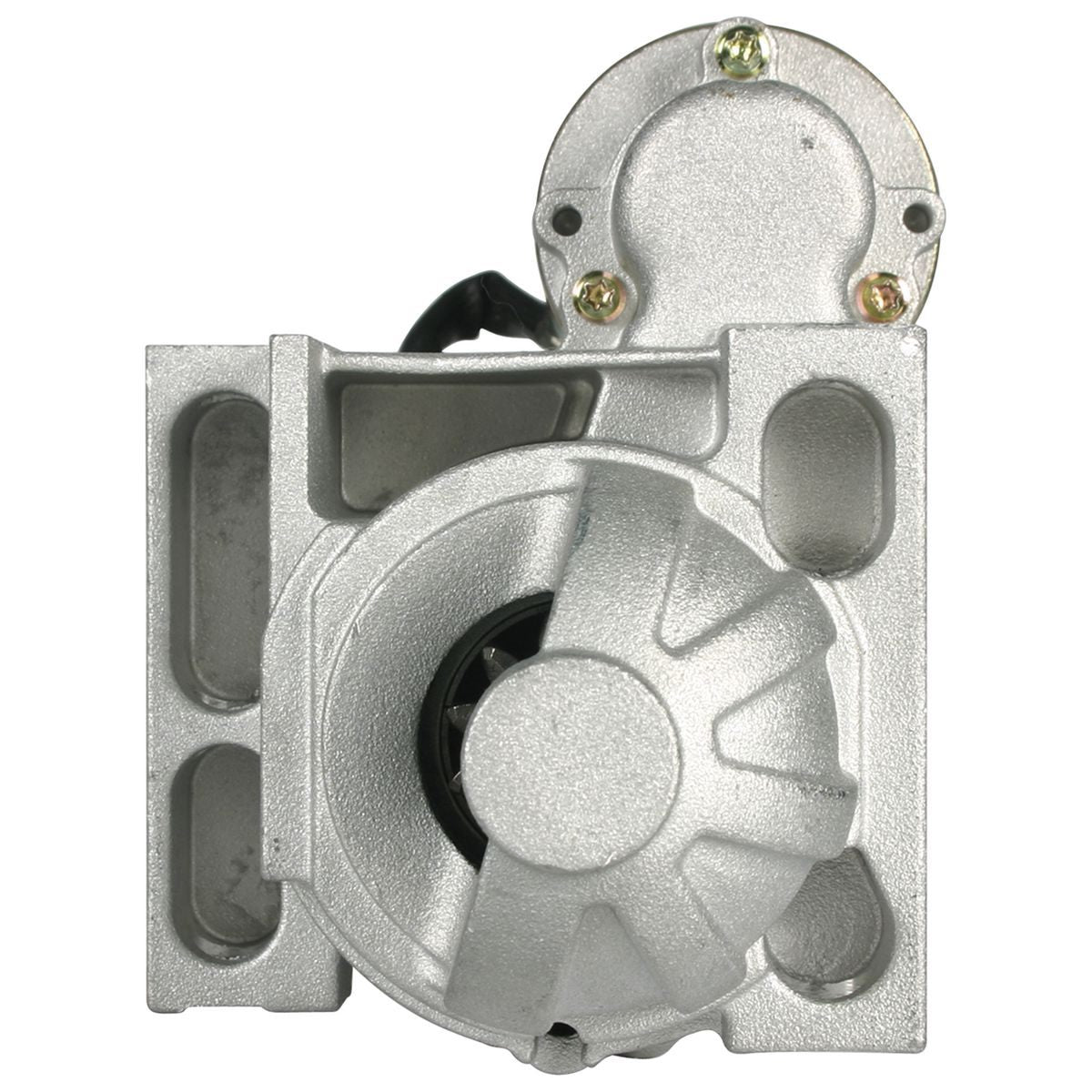

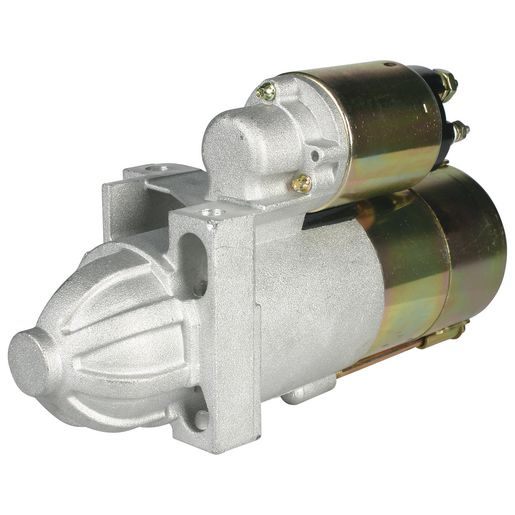

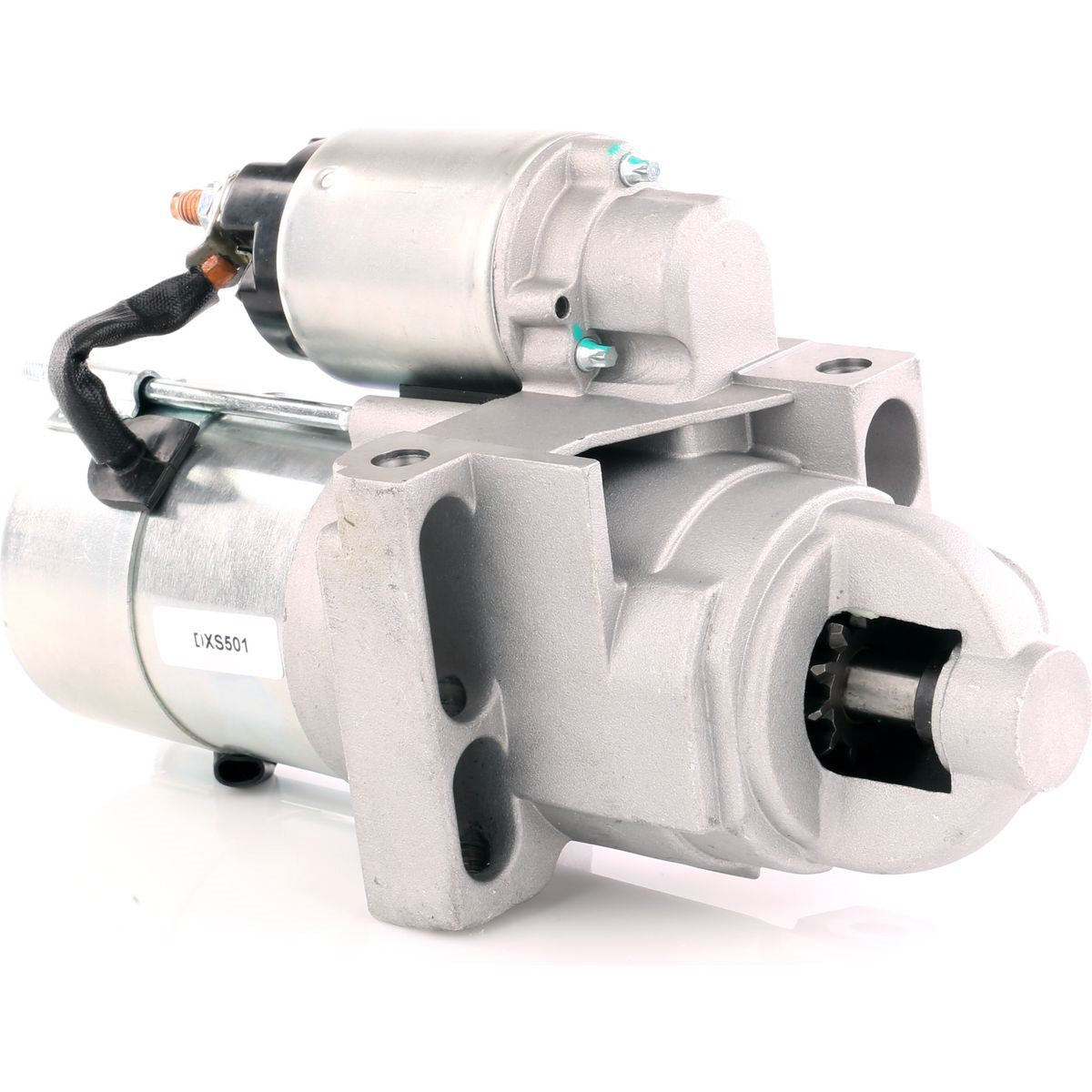

350 CHEV STARTER MOTOR CHEVROLET 253 308 (INLINE BOLT HOLES) DXS501 12V 9TH

Warranty 3yr Passenger 1yr Commercial
Flange Diameter 68mm
Mount Centres A 83mm
Mount Hole Diameter 11
Nose Cone Length 48mm
Number of Teeth 11
Overall Length 230mm
Pinion at Rest 4mm
Pinion Diameter 29mm
Power Rating 1.7kW
Rotation CW
Suits Unit Make Delco
Voltage 12
Note PG260 series offset mount. Will Replace 10MT. May need to be shimmed (KSX12000) PG260 series inline mount. The option offered is to suit 'stock' engines, for modified engines use HXS075 (block to be checked to confirmed if mount hole is allocated)
Weight 4.26kg
Item Type Starter Motor
New / Reman. New
Starter Mount Type Pad
Wet / Dry Clutch Dry
Features

• Quality replacement starter motors and alternators, OEX for the Australian automotive aftermarket.
• OEX stands for Original Equipment Xchange, a brand that initially produced Japanese starter motors and alternators.
• OEX Starter motors and alternators is supported with a three year or 75,000 kilometre warranty on all new units
• 2 year, 50,000 kilometre warranty on all re-manufactured units when used in passenger vehicle applications.
• OEX represents premium quality at competitive price
