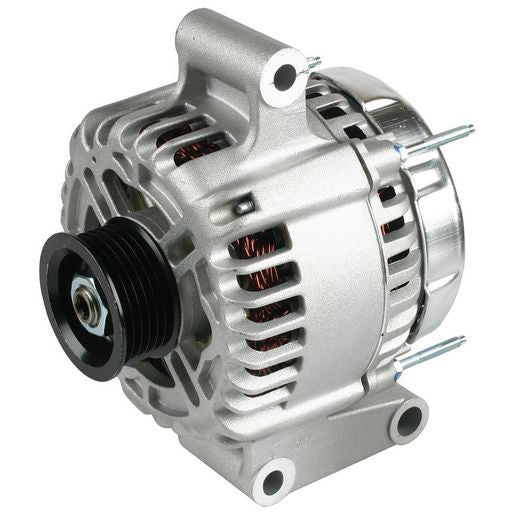

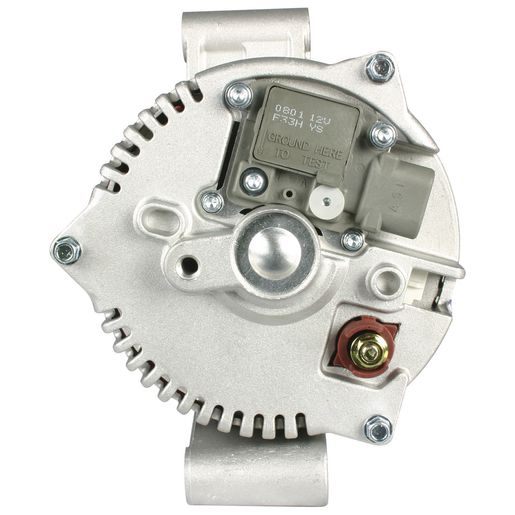

FORD EXPLORER ALTERNATOR 12V 130AMP 281 245 V6 V8 AXA962

Warranty 3yr Passenger 1yr Commercial
Adjusting Hole Diameter 10
Inside Mounting Legs 74mm
Mount Leg Thickness 55mm
Pin Code IR21
Pivot Hole Diameter 10 / 12
Power Rating (Amp) 130
Pulley Outside Diameter 64mm
Pulley Section 6 Groove
Regulator Type Internal
Shaft Diameter 17mm
Suits Unit Make Autolite
Voltage 12
Note Adaptor to suit HXK-28.
A connection between the stator (S) terminal and the (S) terminal of the regulator may be required if the warning lamp does not work on installation.
Weight 7.12kg
Alternator Mount Pad
Mount Cnt to Cnt 175mm
New / Reman. New
OEM Number 6L5T-10300-BA-PO
