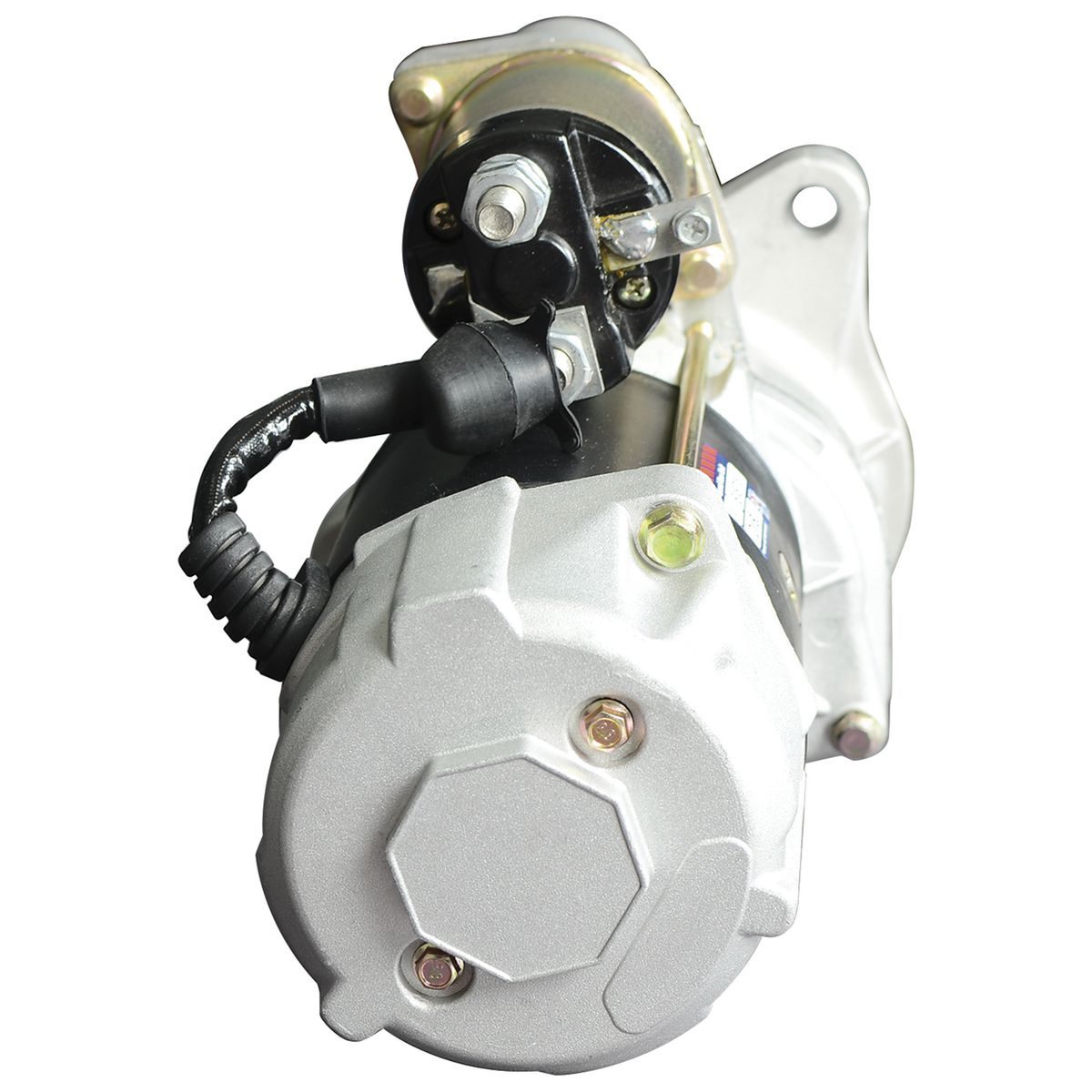

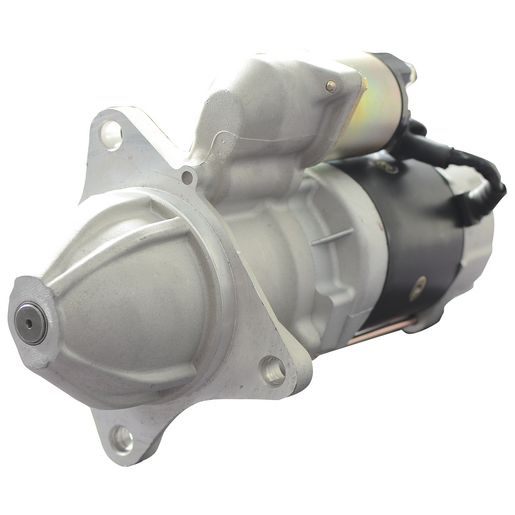

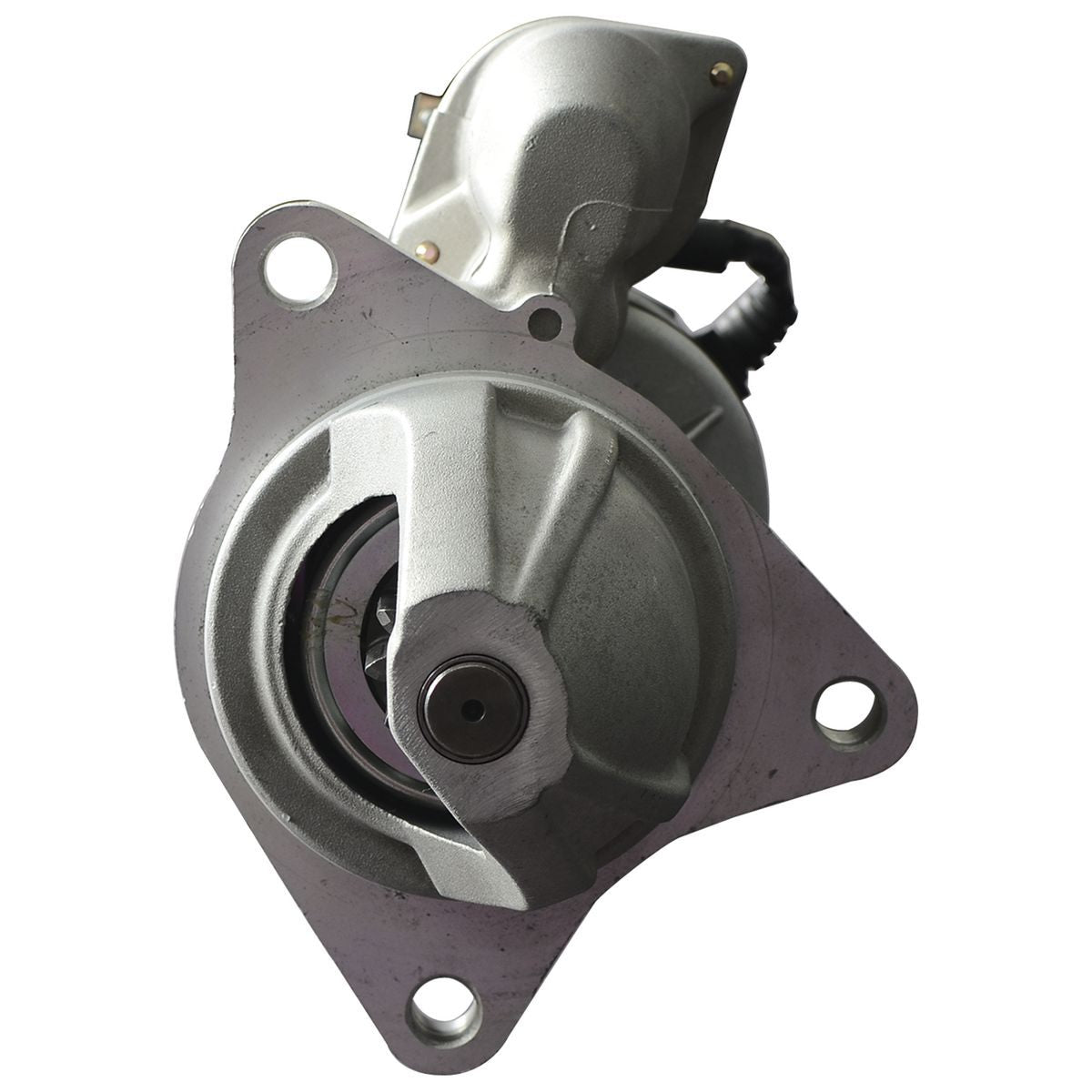

HINO RANGER STARTER MOTOR K13 SERIES 24V 11TH SXS708 500 M10C K13D

Warranty 3yr Passenger 1yr Commercial
Flange Diameter 122mm
Mount Centres A 178mm
Mount Centres B 165mm
Mount Centres C 120mm
Mount Hole Diameter 15
Nose Cone Length 95mm
Number of Teeth 11
Overall Length 390mm
Pinion at Rest 42mm
Pinion Diameter 48mm
Power Rating 7kW
Rotation CW
Suits Unit Make Sawafuji
Voltage 24
Weight 16kg
Item Type Starter Motor
New / Reman. New
Starter Mount Type 3 Hole
Wet / Dry Clutch Dry
Features

• Quality replacement starter motors and alternators, OEX for the Australian automotive aftermarket.
• OEX stands for Original Equipment Xchange, a brand that initially produced Japanese starter motors and alternators.
• OEX Starter motors and alternators is supported with a three year or 75,000 kilometre warranty on all new units
• 2 year, 50,000 kilometre warranty on all re-manufactured units when used in passenger vehicle applications.
• OEX represents premium quality at competitive price
