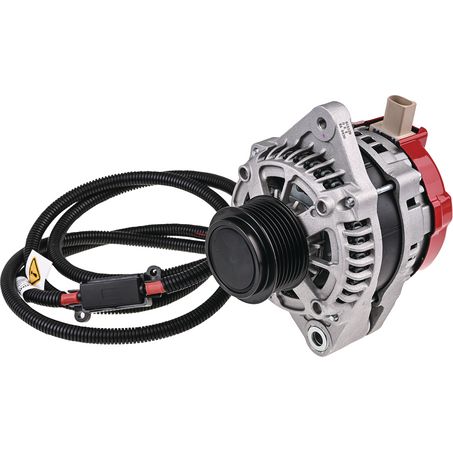

ISUZU D-MAX HIGH OUTPUT ALTERNATOR 12V 130A 4JJ1-TC
Regular price
$634.95
inc. GST
Couldn't load pickup availability
Usually ships within 24 hours
| Description | OEX Alternator 12V 130A Denso Style (High Output) Suits GEN2 MY15,build date from 03/15 to 03/16 |
| Warranty | 3yr Passenger 1yr Commercial |
| Adjusting Hole Diameter | M8x1.25 |
| Mount Leg Thickness | 58mm |
| Pin Code | IR234 |
| Pivot Hole Diameter | 10 |
| Power Rating [Amp] | 130 |
| Pulley Outside Diameter | 62.5mm |
| Pulley Section | 7 Groove |
| Regulator Type | Internal |
| Suits Unit Make | Denso |
| Voltage | 12 |
| Note | One of two identical looking alternators, both with different regulator functions. Confirm by OE number. Suit vehicle GEN2 MY15,build date from 03/15 to 03/16.Cable and fuse included for upgrade This high output alternator is designed to charge lead-acid batteries. To charge lithium batteries, charging must be done through a BC-DC charger |
| Alternator Mount | Single Leg |
| Mount Cnt to Cnt | 160mm |
| New / Reman. | New |
| OEM Number | DXA4174 |
| Weight | 5.04kg |
| Features | • Upgrade original 90A to 130A High Output • ISUZU D-MAX and MU-X CRDi 3.0L 4JJ1 [06/16 - 06/19) • Cable and fuse included for upgrade |
