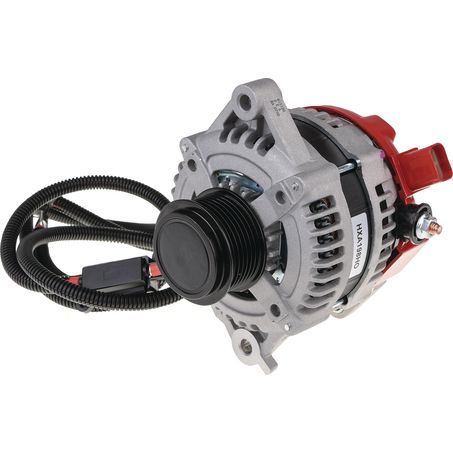

NISSAN ZD30 HIGH OUTPUT ALTERNATOR 12V 150A ZD30DDTI 2007-2016 COMMON RAIL
Regular price
$799.00
inc. GST
Couldn't load pickup availability
Usually ships within 24 hours
| Description | OEX Alternator 12V 150A Hitachi Style - High Output |
| Warranty | 3yr Passenger 1yr Commercial |
| Pulley Type | Clutch |
| Adjusting Hole Diameter | M8x1.25 |
| Inside Mounting Legs | 81mm |
| Pin Code | IR49 |
| Pivot Hole Diameter | 10.5 |
| Power Rating [Amp] | 150 |
| Pulley Outside Diameter | 60mm |
| Pulley Section | 7 Groove |
| Regulator Type | Internal |
| Suits Unit Make | Hitachi |
| Voltage | 12 |
| Note | Only suits common rail applications 2007 to 2016. check battery terminal position against to the original. Cable and fuse included for upgrade. This high output alternator is designed to charge lead-acid batteries. To charge lithium batteries, charging must be done through a BC-DC charger |
| Alternator Mount | Twin Leg |
| Mount Cnt to Cnt | 168mm |
| New / Reman. | New |
| OEM Number | HXA198 |
| Weight | 5.86kg |
| Features | • Upgrade original 90A to 150A High Output • NISSAN PATROL Y61 IV D 3.0L ZD30DDTi 08/07 - 12/16 • Cable and fuse included for upgrade. • Patrol high output • Y61 high output • Nissan high output • Nissan upgrade alternator • ZD30 high output • Upgrade wiring |
| Product Group 1 | ROTATING ELECTRIC |
